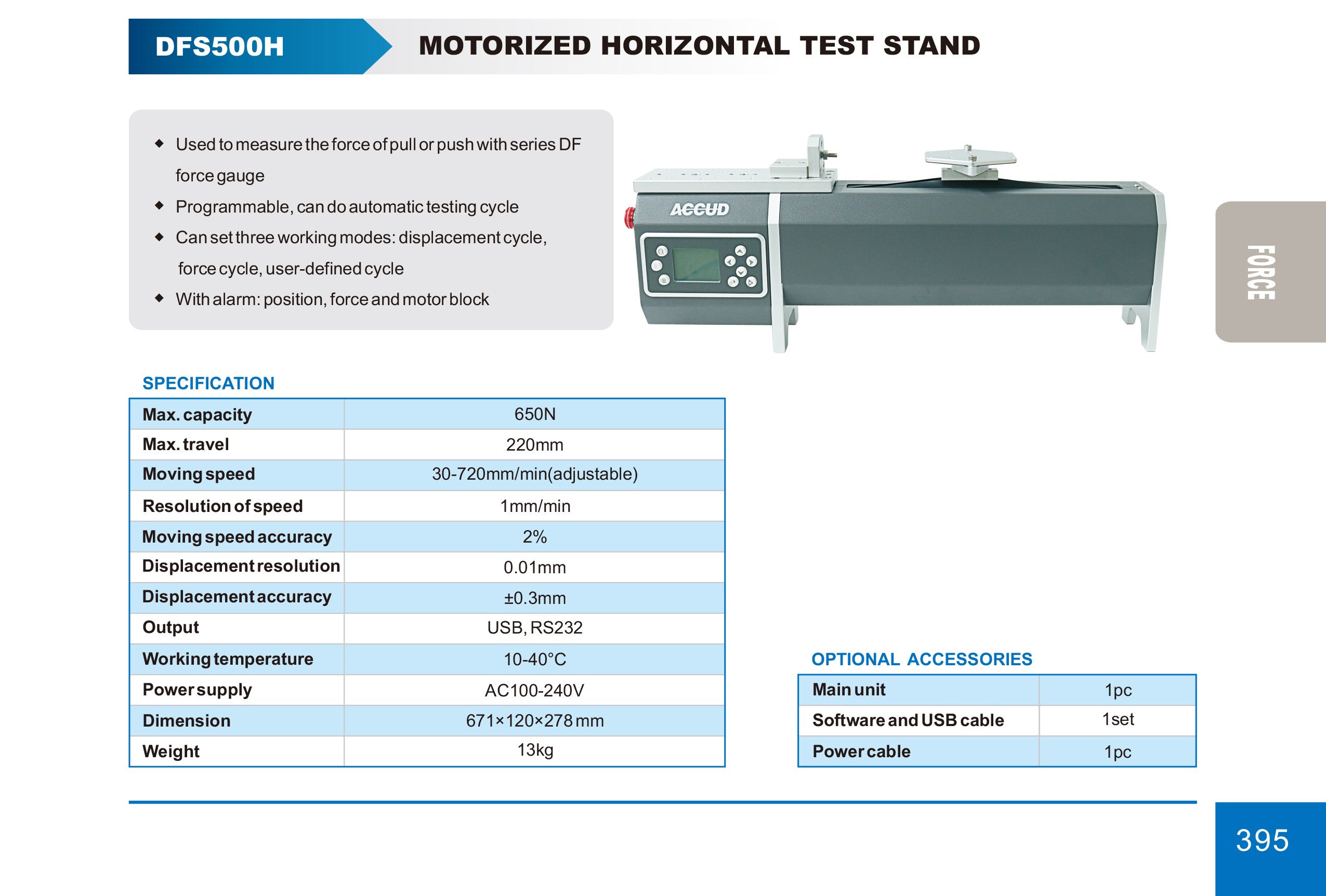

ACCUD DFS500H MOTORIZED HORIZONTAL TEST STAND ( max. capacity 650N )
Motorized horizontal test stand used to measure the force of pull or push with series DF force… Read more
In stock 0 PCS
At the manufacturer 0 PCS
Order number: DFS500H
Product description
Motorized horizontal test stand used to measure the force of pull or push with series DF force gauge. Programmable, can do automatic testing cycle. Can set three working modes: displacement cycle, force cycle, user-defined cycle.
Technical specification:
- With alarm: position, force and motor block
- Max. capacity: 650N
- Max. travel: 220mm
- Moving speed: 30-720mm/min(adjustable)
- Resolution of speed: 1mm/min
- Moving speed accuracy: 2%
- Displacement resolution: 0.01mm
- Displacement accuracy: ±0.3mm
- Output: USB, RS232
- Working temperature: 10-40°C
- Power supply: AC100-240V
- Dimension: 671×120×278 mm
- Weight: 13kg
Optional accessories:
- Main unit: 1pc
- Software and USB cable: 1set
- Power cable: 1pc
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : ISF-RH62
